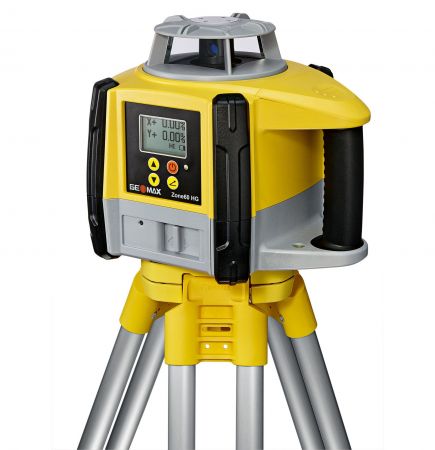

GeoMax Zone60 HG Dual Slope Laser
Geomax Zone 60hg
Price

We Price Match
Click For Details

$1,623.00

Battery
Detector



Order by phone at 1-800-362-8734

Description

Combining a solid-built housing with a powerful, dependable core, the GeoMax Zone60 HG is more flexible than standard laser levels and enables semi-automatic grade in leveling applications.Through the display settings, inclinations are clearly made visible and allow an easy and intuitive operation. The GeoMax Zone60 HG allows grades of up to 8 percent in both axes providing accurate and reliable references.



Basic Detector: 2 deadband settings, 3 1/2" pick up window, rubberized outer housing.



Pro Detector: 3 deadband settings, 5" pick up window, robust rubberized outer housing.



Digital Detector: 5 deadband settings, 5" pick up window, robust rubberized outer housing, digital readout showing distance from deadband.





Specs

Package: Zone60 HG Slope Laser, Carrying Case, Detector, Detector Clamp



*Grade Rod/Tripod sold seperately



    • Operating Range (Diameter): 900 m (3000 ft)



    • Self-Leveling Accuracy: ±1/16" at 100 ft



    • Self-Leveling Range: ±5°



    • Grade Range: Up to 8%



    • Rotation Speed: 600 rpm



    • Laser Diode Type / Class: 635 nm (visible) / Class 1



    • Battery Types: 4 D-Cell Alkaline / Li-Ion



    • Battery Life: >60 hours (Alkaline) / >40 hours (Li-Ion)



    • Operating Temperature: -4°F to 122°F



    • Protection: IP67



    • Warranty: 3 Year



    • Detector Working Range:

        • Basic: 300 m (1000 ft)

        • Pro: 300 m (1000 ft)

        • Digital: 900 m (3000 ft)
