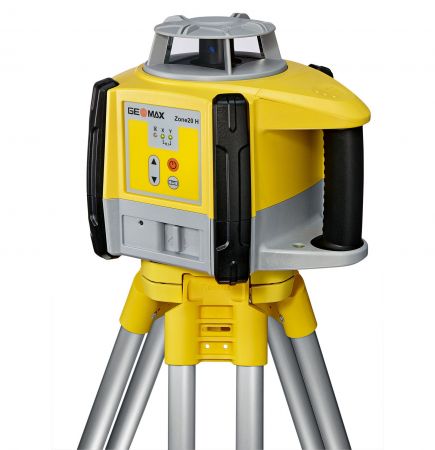

GeoMax Zone20 H Rotating Laser Level
Geomax Zone 20h
Price

We Price Match
Click For Details

$1,018.00

Battery
Detector



Order by phone at 1-800-362-8734

Description

The Zone20 H is an economic and rugged entry level rotating laser. With a solid-built housing and a straightforward interface, this laser offers all functions needed for regular and flexible use. Boasting an IP67 certification, ruggedized housing, and glass cage, it's dependable no matter the conditions. The Zone20 H is an automatic horizontal laser that allows grade setting manually in two axes. It is easy to use and highly reliable in any element.



Basic Detector: 2 deadband settings, 3 1/2" pick up window, rubberized outer housing.

Pro Detector: 3 deadband settings, 5" pick up window, robust rubberized outer housing.

Digital Detector: 5 deadband settings, 5" pick up window, robust rubberized outer housing, digital readout showing distance from deadband.



Specs

Package Includes: Zone20 H Rotating Laser, Carrying Case, Detector, Detector Clamp

*Grade Rod/Tripod sold seperately

  • Operating Range (Diameter): 900 m (3000 ft)

  • Self-Leveling Accuracy: ± 3/32” at 100 ft

  • Self-Leveling Range: ±6°

  • Rotation Speed: 600 rpm

  • Laser Diode Type / Class: 635 nm (visible) / Class 1

  • Battery Types: 4 D-Cell Alkaline / Li-Ion

  • Battery Life: >60 hours (Alkaline) / >40 hours (Li-Ion)

  • Operating Temperature: 14°F to 122°F

  • Protection: IP67

  • Warranty: 3 Year

  • Detector Working Range:

    • Basic: 300 m (1000 ft)

    • Pro: 300 m (1000 ft)

    • Digital: 900 m (3000 ft)
